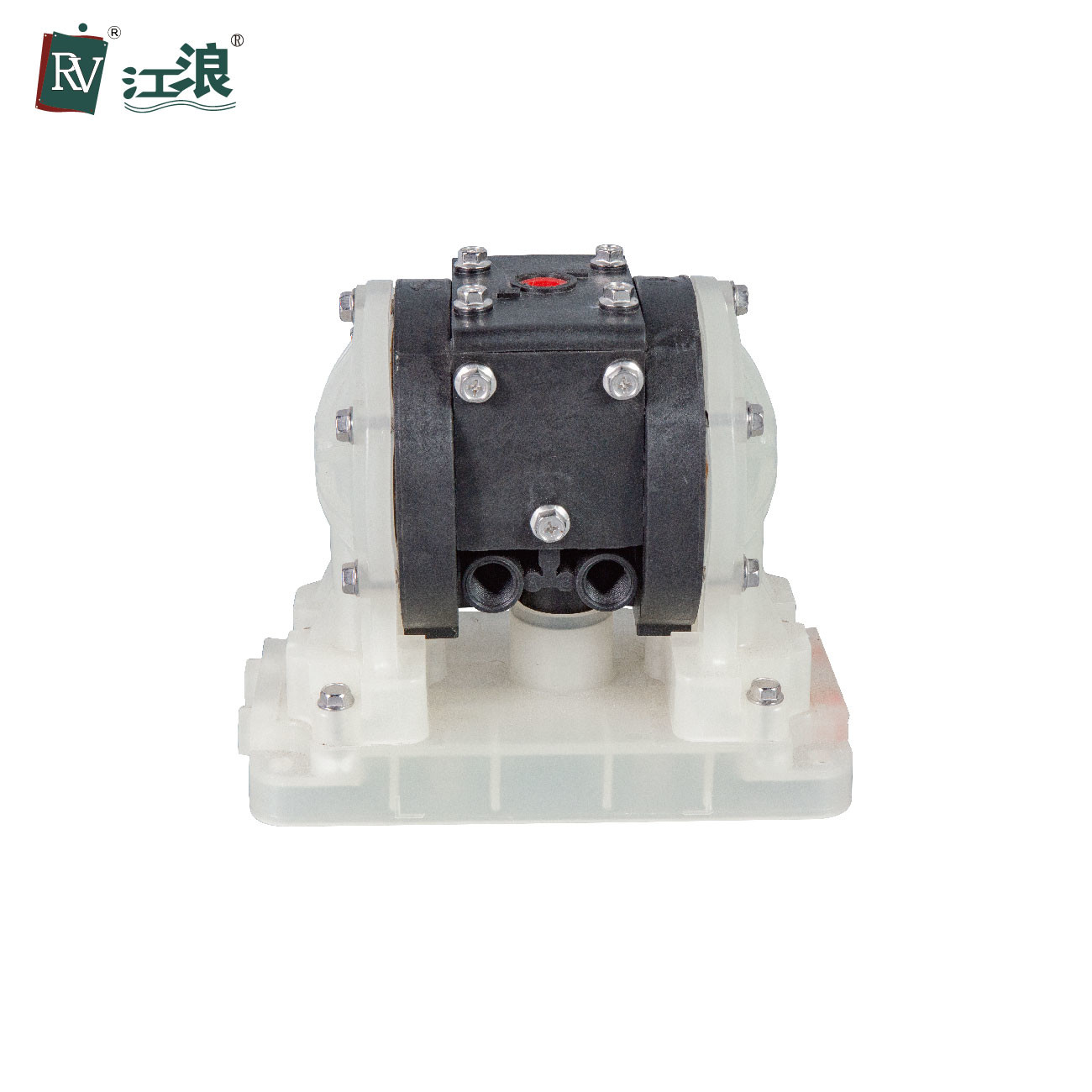

1/4 Inch Low Pressure PVDF Air Operated Diaphragm Pump Water Oil Lotion Transfer
Air Operated Diaphragm Pump Application:
- Mixing Tanks
- Filling Machines
- Paint Filtration
- Pigment Milling
- Filter Press
- 55 Gallon Drum Transfer
- Air Spray – Supply or Transfer
- General Unloading/Transfer
- Powder Coating
- The elastomeric diaphragm can use as a general-purpose dynamic seal, removing numerous restrictions found with other sealing techniques. They can be built leak-free, friction-free, and sensitive to low pressure. With proper material considerations, the diaphragm can be sealed over wide pressure and temperature range without maintenance or lubrication.
How to Choose Air Operated Diaphragm Pump?
Air Operated Diaphragm pumps are just one of the many types of oil-free pumps that are presently being used in many applications to avoid the problems of oil vapor contamination that affect many of today’s stringent processes. Commercially available diaphragm pumps contain no sealing or lubricating oils within the pumping head, and this means that you can depend upon producing a vacuum where the residual gases are entirely free of oil vapor.
All vacuum pumps, oil-free or not, have differing operational characteristics that make them fully suitable for one application and totally unsuitable for another. Diaphragm pumps are no exception. Matching pump-type to application can be difficult, but a fuller understanding of the modes of operation in terms of strengths, weaknesses, and peculiarities can relieve some of the difficulties.
| Max Working Pressure | 100 psi(0.7Mpa, 7bar) |
| Max Flow Rate | 5.0 gpm(19lpm) |
| Max Reciprocating Speed | 320 cpm |
| Max Suction Height (Dry Sucking) | 3m |
| Max Permitted Grain | 0.06 in(1.5mm) |
| Max Air Consumption | 7.0scfm(3.5L/s) |
| Air Inlet Size | 1/4 in.npt(f) |
| Air Outlet Size | 1/4 in.npt(f) |
| Fluid Inlet Size | 1/4 in. |
| Fluid Outlet Size | 1/4 in. |
| Net Weight | PP pump 1.1kg; PVDF pump 1.5kg |
Packing & Shipping:
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
Product Tags:
|
|
Low Pressure PVDF Air Operated Diaphragm Pump 1/4 Inch Water Oil Lotion Transfer Images
|
